AC Input and Output Reactor
The Input Reactor is subject to series connection between the power incoming line and the input side of the frequency converter, which is used to inhibit higher-order harmonics of the input current. It restricts impact on frequency converter from surge voltage caused by grid voltage sudden change and switching overvoltage, which effectively protects the rectifier unit of the frequency converter, improves imbalance of three-phase power supply, and improves power factor of the input power.
The Output Reactor is arranged at the circuit between the output side of the frequency converter and the motor, which is used to make compensation for the influence of distributed capacitance of long line, effectively inhibits harmonic wave output by the frequency converter, and reduces noise from the frequency converter; it reduces du/dt on the motor terminals and lowers the peak value of the load current, so as to avoid premature aging of motor insulation and damage to the motor and the frequency converter.

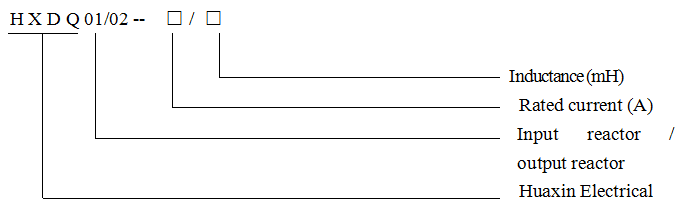

Model Description:
Technical Parameters
1. Rated Operating Voltage: 380V/50Hz
2. Rated Operating Current: 5A-1600A; 40℃/104℉
3. Dielectric Strength: iron core - winding 3000VAC/50Hz/5mA/10s free of arc-over and breakdown
4. Insulation Resistance: 1000VDC Insulation resistance value ≥100MΩ
5. Reactor Noise: lower than 65dB
6. Protection Class: IP00
7. Insulation Level: above Level F.
Product Model
Power
KW
Rated Current
A
Inductance
mH
Voltage Drop
%
Insulation Level
HXDQ01-240A/0.262mH
14.2
240
0.262
2
F
HXDQ01-270A/0.85mH
270
0.85
2
F
HXDQ01-350A/0.18mH
20.78
350
0.18
2
F
HXDQ01-250A/0.194mH
11.4
250
0.194
2
F
HXDQ01-250A/0.262mH
14.2
250
0.262
2
F
HXDQ01-300A/0.04mH
3.4
300
0.04
2
F
HXDQ01-5A/2.8mH
1.5
5
2.8
2
F
HXDQ01-7A/2mH
2.2
7
2
2
F
HXDQ01-10A/1.4mH
3.7
10
1.4
2
F
HXDQ01-15A/0.93mH
5.5
15
0.93
2
F
HXDQ01-20A/0.7mH
7.5
20
0.7
2
F
HXDQ01-30A/0.47mH
11
30
0.47
2
F
HXDQ01-40A/0.35mH
15
40
0.35
2
F
HXDQ01-50A/0.28mH
19
50
0.28
2
F
HXDQ01-60A/0.24mH
22
60
0.24
2
F
HXDQ01-80A/0.17mH
30
80
0.17
2
F
HXDQ01-90A/0.16mH
37
90
0.16
2
F
HXDQ01-120A/0.12mH
45
120
0.12
2
F
HXDQ01-150A/0.095mH
55
150
0.095
2
F
HXDQ01-200A/0.07mH
75
200
0.07
2
F
HXDQ01-250A/0.056mH
110
250
0.056
2
F
HXDQ01-290A/0.048mH
132
290
0.048
2
F
HXDQ01-330A/0.042mH
160
330
0.042
2
F
HXDQ01-390A/0.036mH
185
390
0.036
2
F
HXDQ01-490A/0.028mH
220
490
0.028
2
F
HXDQ01-660A/0.021mH
300
660
0.021
2
F
HXDQ01-800A/0.017mH
380
800
0.017
2
F
HXDQ01-1000A/0.014mH
450
1000
0.014
2
F
HXDQ01-1250A/0.011mH
550
1250
0.011
2
F
HXDQ01-1600A/0.0087mH
630
1600
0.0087
2
F
HXDQ01-5A/5.6mH
1.5
5
5.6
4
F
HXDQ01-7A/4mH
2.2
7
4
4
F
HXDQ01-10A/2.8mH
3.7
10
2.8
4
F
HXDQ01-15A/1.8mH
5.5
15
1.8
4
F
HXDQ01-20A/1.4mH
7.5
20
1.4
4
F
HXDQ01-30A/0.93mH
11
30
0.93
4
F
HXDQ01-40A/0.7mH
15
40
0.7
4
F
HXDQ01-50A/0.56mH
18.5
50
0.56
4
F
HXDQ01-60A/0.46mH
22
60
0.46
4
F
HXDQ01-80A/0.35mH
30
80
0.35
4
F
HXDQ01-90A/0.31mH
37
90
0.31
4
F
HXDQ01-120A/0.23mH
45
120
0.23
4
F
HXDQ01-150A/0.19mH
55
150
0.19
4
F
HXDQ01-200A/0.14mH
75
200
0.14
4
F
HXDQ01-250A/0.11mH
110
250
0.11
4
F
HXDQ01-290A/0.096mH
132
290
0.096
4
F
HXDQ01-330A/0.085mH
160
330
0.085
4
F
HXDQ01-390A/0.072mH
185
390
0.072
4
F
HXDQ01-490A/0.057mH
220
490
0.057
4
F
HXDQ01-660A/0.042mH
300
660
0.042
4
F
HXDQ01-800A/0.035mH
380
800
0.035
4
F
HXDQ01-1000A/0.028mH
450
1000
0.028
4
F
Product model
Power
KW
Rated current
A
Inductance
mH
Voltage drop
%
Insulation level
HXDQ02-350A/0.025mH
19.78
350
0.025
2
F
HXDQ02-300A/0.04mH
3.39
300
0.04
2
F
HXDQ02-300A/0.081mH
6.9
300
0.081
2
F
HXDQ02-310A/0.02825mH
6.15
310
0.02825
2
F
HXDQ02-5A/2.8mH
1.5
5
2.8
2
F
HXDQ02-7A/2mH
2.2
7
2
2
F
HXDQ02-10A/1.4mH
3.7
10
1.4
2
F
HXDQ02-15A/0.93mH
5.5
15
0.93
2
F
HXDQ02-20A/0.7mH
7.5
20
0.7
2
F
HXDQ02-30A/0.47mH
11
30
0.47
2
F
HXDQ02-40A/0.35mH
15
40
0.35
2
F
HXDQ02-50A/0.28mH
18.5
50
0.28
2
F
HXDQ02-60A/0.24mH
22
60
0.24
2
F
HXDQ02-80A/0.17mH
30
80
0.17
2
F
HXDQ02-90A/0.16mH
37
90
0.16
2
F
HXDQ02-120A/0.12mH
45
120
0.12
2
F
HXDQ02-150A/0.095mH
55
150
0.095
2
F
HXDQ02-200A/0.07mH
75
200
0.07
2
F
HXDQ02-250A/0.056mH
110
250
0.056
2
F
HXDQ02-290A/0.048mH
132
290
0.048
2
F
HXDQ02-330A/0.042mH
160
330
0.042
2
F
HXDQ02-390A/0.036mH
185
390
0.036
2
F
HXDQ02-490A/0.028mH
220
490
0.028
2
F
HXDQ02-660A/0.021mH
300
660
0.021
2
F
HXDQ02-800A/0.017mH
380
800
0.017
2
F
HXDQ02-1000A/0.014mH
450
1000
0.014
2
F
HXDQ02-1250A/0.011mH
550
1250
0.011
2
F
HXDQ02-1600A/0.0087mH
630
1600
0.0087
2
F
HXDQ02-5A/1.4mH
1.5
5
1.4
4
F
HXDQ02-7A/1.0mH
2.2
7
1.0
4
F
HXDQ02-10A/0.7mH
3.7
10
0.7
4
F
HXDQ02-15A/0.47mH
5.5
15
0.47
4
F
HXDQ02-20A/0.35mH
7.5
20
0.35
4
F
HXDQ02-30A/0.23mH
11
30
0.23
4
F
HXDQ02-40A/0.18mH
15
40
0.18
4
F
HXDQ02-50A/0.14mH
19
50
0.14
4
F
HXDQ02-60A/0.12mH
22
60
0.12
4
F
HXDQ02-80A/0.087mH
30
80
0.087
4
F
HXDQ02-90A/0.078mH
37
90
0.078
4
F
HXDQ02-120A/0.058mH
45
120
0.058
4
F
HXDQ02-150A/0.047mH
55
150
0.047
4
F
HXDQ02-200A/0.035mH
75
200
0.035
4
F
HXDQ02-250A/0.028mH
110
250
0.028
4
F
HXDQ02-290A/0.024mH
132
290
0.024
4
F
HXDQ02-330A/0.021mH
160
330
0.021
4
F
HXDQ02-390A/0.018mH
185
390
0.018
4
F
HXDQ02-490A/0.014mH
220
490
0.014
4
F
HXDQ02-660A/0.011mH
300
660
0.011
4
F
HXDQ02-800A/0.0087mH
380
800
0.009
4
F
HXDQ02-1000A/0.007mH
450
1000
0.007
4
F
HXDQ02-1250A/0.0058mH
550
1250
0.006
4
F
HXDQ02-1600A/0.0043mH
630
1600
0.004
4
F
Product Model
L × W × H (mm)
HXDQ01-240A/0.262mH
394×180×304
HXDQ01-270A/0.85mH
510×198×466
HXDQ01-350A/0.18mH
390×189×305
HXDQ01-250A/0.194mH
394×180×304
HXDQ01-250A/0.262mH
394×180×304
HXDQ01-300A/0.04mH
210×204×260
HXDQ01-5A/2.8mH
110×80×130
HXDQ01-7A/2mH
110×80×130
HXDQ01-10A/1.4mH
110×80×130
HXDQ01-15A/0.93mH
155×75×150
HXDQ01-20A/0.7mH
155×75×150
HXDQ01-30A/0.47mH
155×94×130
HXDQ01-40A/0.35mH
155×94×130
HXDQ01-50A/0.28mH
195×92×160
HXDQ01-60A/0.24mH
195×92×160
HXDQ01-80A/0.17mH
195×92×160
HXDQ01-90A/0.16mH
195×92×160
HXDQ01-120A/0.12mH
255×104×230
HXDQ01-150A/0.095mH
255×104×230
HXDQ01-200A/0.07mH
255×124×230
HXDQ01-250A/0.056mH
255×124×260
HXDQ01-290A/0.048mH
287×126×275
HXDQ01-330A/0.042mH
287×126×275
HXDQ01-390A/0.036mH
330×140×275
HXDQ01-490A/0.028mH
330×150×305
HXDQ01-660A/0.021mH
330×165×305
HXDQ01-800A/0.017mH
395×210×390
HXDQ01-1000A/0.014mH
395×210×390
HXDQ01-1250A/0.011mH
405×210×420
HXDQ01-1600A/0.0087mH
405×210×420
HXDQ01-5A/5.6mH
155×75×150
HXDQ01-7A/4mH
155×75×150
HXDQ01-10A/2.8mH
155×94×150
HXDQ01-15A/1.8mH
155×94×150
HXDQ01-20A/1.4mH
155×94×150
HXDQ01-30A/0.93mH
195×92×160
HXDQ01-40A/0.7mH
195×112×160
HXDQ01-50A/0.56mH
195×112×160
HXDQ01-60A/0.46mH
195×122×160
HXDQ01-80A/0.35mH
195×127×180
HXDQ01-90A/0.31mH
195×127×180
HXDQ01-120A/0.23mH
255×134×230
HXDQ01-150A/0.19mH
287×136×240
HXDQ01-200A/0.14mH
287×146×240
HXDQ01-250A/0.11mH
322×145×320
HXDQ01-290A/0.096mH
322×150×305
HXDQ01-330A/0.085mH
322×155×305
HXDQ01-390A/0.072mH
322×160×305
HXDQ01-490A/0.057mH
385×215×390
HXDQ01-660A/0.042mH
395×210×390
HXDQ01-800A/0.035mH
430×220×450
HXDQ01-1000A/0.028mH
430×220×450
Product model
L × W × H (mm)
HXDQ02-250A/0.4mH
494×180×418
HXDQ02-350A/0.025mH
237×178×241
HXDQ02-300A/0.04mH
285×180×242
HXDQ02-300A/0.081mH
220×204×260
HXDQ02-310A/0.02825mH
237×178×241
HXDQ02-5A/2.8mH
110×80×130
HXDQ02-7A/2mH
110×80×130
HXDQ02-10A/1.4mH
110×80×130
HXDQ02-15A/0.93mH
155×75×150
HXDQ02-20A/0.7mH
155×94×150
HXDQ02-30A/0.47mH
155×94×130
HXDQ02-40A/0.35mH
155×94×130
HXDQ02-50A/0.28mH
195×92×160
HXDQ02-60A/0.24mH
195×92×160
HXDQ02-80A/0.17mH
195×92×160
HXDQ02-90A/0.16mH
195×92×160
HXDQ02-120A/0.12mH
255×104×225
HXDQ02-150A/0.095mH
255×104×230
HXDQ02-200A/0.07mH
255×124×230
HXDQ02-250A/0.056mH
255×124×260
HXDQ02-290A/0.048mH
287×126×275
HXDQ02-330A/0.042mH
287×126×275
HXDQ02-390A/0.036mH
330×140×275
HXDQ02-490A/0.028mH
330×150×305
HXDQ02-660A/0.021mH
330×165×305
HXDQ02-800A/0.017mH
395×210×390
HXDQ02-1000A/0.014mH
395×210×390
HXDQ02-1250A/0.011mH
405×210×420
HXDQ02-1600A/0.0087mH
405×210×420
HXDQ02-5A/1.4mH
110×80×130
HXDQ02-7A/1.0mH
110×80×130
HXDQ02-10A/0.7mH
110×80×130
HXDQ02-15A/0.47mH
155×75×130
HXDQ02-20A/0.35mH
155×75×140
HXDQ02-30A/0.23mH
155×94×140
HXDQ02-40A/0.18mH
155×94×130
HXDQ02-50A/0.14mH
155×94×130
HXDQ02-60A/0.12mH
195×92×160
HXDQ02-80A/0.087mH
195×92×160
HXDQ02-90A/0.078mH
195×92×160
HXDQ02-120A/0.058mH
195×112×160
HXDQ02-150A/0.047mH
255×114×230
HXDQ02-200A/0.035mH
255×124×230
HXDQ02-250A/0.028mH
255×124×260
HXDQ02-290A/0.024mH
287×126×250
HXDQ02-330A/0.021mH
287×131×250
HXDQ02-390A/0.018mH
287×131×275
HXDQ02-490A/0.014mH
330×140×305
HXDQ02-660A/0.011mH
330×155×305
HXDQ02-800A/0.0087mH
395×210×390
HXDQ02-1000A/0.007mH
395×210×390
HXDQ02-1250A/0.0058mH
405×210×420
HXDQ02-1600A/0.0043mH
405×210×420
The high-performance foil winding structure is adopted, which has a small DC resistance, a strong anti-short circuit ability and a strong momentary overload capacity; it has the characteristics of reliable performance, good linearity and low noise after vacuum pressure impregnation treatment. The high-quality high-silicon cold-rolled silicon steel sheet is adopted for the iron core, so as to achieve small loss, high efficiency and low temperature rise.
