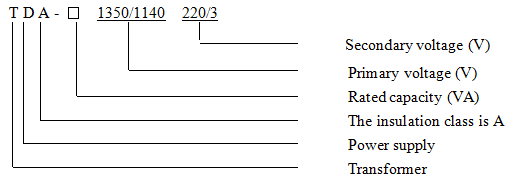

Model Description

Technical Parameters

1. The iron core of the Supply Transformer is E-shaped, which is of housing structure (coil wrapping iron core).

2. The supply transformer has two windings, a primary winding and a secondary winding. Therefore, there are four leading-out terminals. In order to prevent AC hum and other disturbance, a shielding layer is often added between the primary and the secondary windings, and the shielding layer is the grounding terminal. Therefore, there are at least 4 wiring terminals of the supply transformer.

3. The silicon steel sheet of E-shaped Supply Transformer is inserted alternatively, no air gap is reserved between the E and I plates, so the whole iron core fits together perfectly.

1.The elevation height shall not exceed 1000 m, and it is derated for use above 1000 m;

2. Ambient temperature: -25 to 55℃

3. Relative humidity: ≤95%

4. The installation site shall be free of gas, chemical deposition, dust and other explosive and corrosive media with influence on transformer insulation.
