DC Reactor
DC Reactor is used in the DC circuit after rectification, and DC output from the reactor is closer to the ideal DC; it is used between the rectifier link and inverter link of the frequency converter, so as to reduce higher-order harmonics in the input current, enable more stable inverter link operation, improve power factor of input power, and restrict short-circuit current.

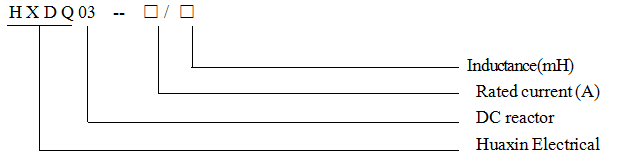

Model Description:
Technical Parameters
1. Rated Operating Voltage: DC500V-DC1000V
2. Dielectric Strength: iron core - winding 3000VAC/50Hz/5mA/10s free of arc-over and breakdown
3. Insulation Resistance: 1000VDC Insulation resistance value ≥100MΩ
4. Reactor Noise: lower than 65dB
5. Protection Class: IP00
6. Insulation Level: above Level F.
Product Model
Power
KW
Rated Current
A
Inductance
mH
Insulation Level
HXDQ03-12A/6.3mH
3.7-4
12
6.3
F,H
HXDQ03-23A/3.6mH
5.5-7.5
23
3.6
F,H
HXDQ03-32A/2mH
11-15
32
2
F,H
HXDQ03-40A/1.3mH
18.5
40
1.3
F,H
HXDQ03-50A/1.08mH
22
50
1.08
F,H
HXDQ03-65A/0.8mH
30
65
0.8
F,H
HXDQ03-78A/0.7mH
37
78
0.7
F,H
HXDQ03-95A/0.54mH
45
95
0.54
F,H
HXDQ03-115A/0.45mH
55
115
0.45
F,H
HXDQ03-160A/0.36mH
75
160
0.36
F,H
HXDQ03-180A/0.33mH
90
180
0.33
F,H
HXDQ03-250A/0.26mH
110-132
250
0.26
F,H
HXDQ03-340A/0.17mH
160
340
0.17
F,H
HXDQ03-460A/0.09mH
185-220
460
0.09
F,H
HXDQ03-650A/0.072mH
300
650
0.072
F,H
Product Model
L × W × H (mm)
HXDQ03-12A/6.3mH
100×100×105
HXDQ03-23A/3.6mH
105×100×135
HXDQ03-32A/2mH
105×110×140
HXDQ03-40A/1.3mH
105×110×140
HXDQ03-50A/1.08mH
114×120×148
HXDQ03-65A/0.8mH
135×130×175
HXDQ03-78A/0.7mH
135×130×175
HXDQ03-95A/0.54mH
135×125×175
HXDQ03-115A/0.45mH
155×140×195
HXDQ03-160A/0.36mH
165×130×210
HXDQ03-180A/0.33mH
165×130×210
HXDQ03-250A/0.26mH
210×155×258
HXDQ03-340A/0.17mH
210×155×258
HXDQ03-460A/0.09mH
220×155×285
HXDQ03-650A/0.072mH
235×165×285
The argon arc welding process is adopted for the reactor, which has low noise, small magnetic leakage and stable inductance. The foil winding process is adopted for the coil, the momentary overload capacity is strong, and the process is perfect with beautiful appearance. The high-quality high-silicon cold-rolled silicon steel sheet is adopted for the iron core, so as to achieve high reliability, small volume and light weight.
