Fixed Belt Conveyor
The Fixed Belt Conveyor is a universal series. It is a continuous conveying equipment with a cotton canvas, nylon, polyester canvas and wire rope conveyor belt as the traction component. It can be widely used in coal, metallurgy, mining, port, chemical industry, light industry, petroleum, machinery and other industries, conveying various kinds of bulk and packaged materials with a bulk density range of 500-2,500 kg/m3.
This belt conveyor has the advantages of large conveying capacity, high climbing capacity, low operating cost, easy maintenance, etc., furthermore, it is convenient to realize the automatic control of the delivery system.
The allowed size and weight of the conveying materials depends on the belt width, belt speed, groove angle, and inclination of the conveyor, as well as the frequency of conveying large bulk materials.
The applicable working environment temperature is generally between -40℃(-40℉) and 40℃(104℉). For those who requires a heat-resistant, cold-resistant, explosion-proof, flame-resistant, anti-corrosion, acid & alkaline-resistant, and/or water-proof working environment, protective measures should be taken accordingly.
The Fixed Belt Conveyor is designed by each part series. It can be customized, calculated, assembled into a complete conveyor according to different operational paths, terrains, and working conditions. Our manufacturer will produce and supply the Fixed Belt Conveyor(s) according to your needs. The designer is responsible for the performance parameters of the complete machine and the manufacturer is responsible for the performance and quality of the parts.
The conveyor should better be installed in the corridor. If installed in the open air, the driving device should be equipped with a protective cover.
This series of products can meet the requirements of horizontal, upward, downward, and other movements. It can also adopt the combination of convex, concave and straight line for diliverying.

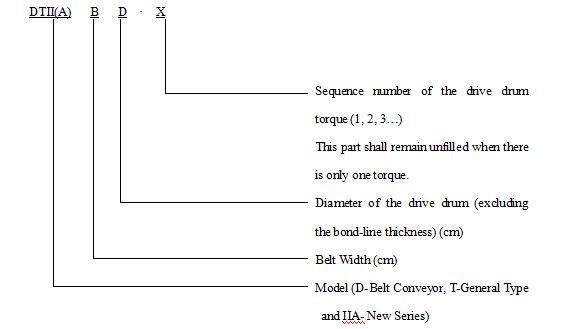

Description of Product Model
S/N
Belt Conveyor Specifications
Conveying Capacity
(t/h)
Belt Speed
(m/s)
Belt Width
(mm)
Belt Type
Main Motor Power
(kW)
Diameter of Drive Drum (mm)
Diameter of Idler
(mm)
1
DSJ100/80/160YB
800
2.5
1000
PVC1000S
160
630
108
2
DSJ100/80/2×200YB
800
2.5
1000
PVC1000S
2×200
630
108
3
DSJ100/80/2x160YB
800
2.5
1000
PVC1000S
2×160
630
108
4
DSJ100/90/2×250YB
900
2.5
1000
PVC1000S
2×250
630
108
5
DSJ100/90/2×315YB
900
2.5
1000
PVC1000S
2×315
630
108
6
DSJ100/95/2×355YB
950
2.5
1000
PVC1000S
2×355
630
108
7
DSJ100/95/2×400YB
950
2.5
1000
PVC1000S
2×400
630
108
8
DSJ120/100/250YB
1000
3.5
1200
PVC1400S
250
830
133
9
DSJ120/110/2×200YB
1100
3.5
1200
PVC1400S
2×200
830
133
10
DSJ120/130/315YB
1300
3.5
1200
PVC1400S
315
830
133
11
DSJ120/140/355YB
1400
3.5
1200
PVC1400S
355
830
133
12
DSJ120/150/2×250YB
1500
3.5
1200
PVC1400S
2×250
830
133
13
DSJ120/150/2×315YB
1500
3.5
1200
PVC1400S
2×315
830
133
14
DSJ120/150/400YB
1500
3.5
1200
PVC1400S
400
830
133
15
DSJ120/170/2×355YB
1700
3.5
1200
PVC1400S
2×355
830
133
16
DSJ120/180/2×400YB
1800
3.5
1200
PVC1400S
2×400
830
133
17
DSJ120/70/200YB
700
3.5
1200
PVC1400S
200
830
133
18
DSJ80/40/55YB
400
2
800
PVC800S
55
630
108
19
DSJ80/48/2×55YB
480
2
800
PVC800S
2×55
630
108
20
DTC80/15/200SYB
150
2
800
PVC1400S
200
830
108
21
DTC80/15/250SYB
150
2
800
PVC1400S
250
830
108
22
DTL100/100/2×355YB
1000
2.5
1000
PVC1400S
2×355
830
108
23
DTL100/120/2×400YB
1200
2.5
1000
PVC1400S
2×400
830
108
24
DTL100/70/2×250YB
700
2.5
1000
PVC1400S
2×250
830mm
108
25
DTL100/80/2×315YB
800
2.5
1000
PVC1400S
2×315
830mm
108
26
DTL120/110/2×355SYB
1100
3.5
1200
PVC1400S
2×355
1000mm
133
27
DTL120/130/2×400SYB
1300
3.5
1200
PVC1400S
2×400
1000mm
133
Improve drive efficiency and reduce power consumption. In the traditional drive system, the Y Series Asynchronous Motor is rated as IE1- Standard Efficiency; whereas in this new drive system, the Permanent Magnet Synchronous Motor is rated as IE4-Super Premium Efficiency. By using an IE4 rated Permanent Magnet Synchronous Motor, a DSJ80 belt conveyor can save up to 100,000 kWh per year compared to the same belt conveyor with an IE1 Y Series Asynchronous Motor.
The new system features a soft starter and is maintenance-free. It also uses a VFD to control the starting process, which allows the system to be up and running in a slow and uniform way. In addition, compared with the traditional system, the new system eliminates the hydraulic coupler, speed reducer, and synchronous gear, which could save substantial maintenance costs.
1. Smooth and steady conveying. No relative movement occurs between materials and the conveyor belt, so it can avoid materials from being damaged during conveying.
2. Lower noise. Right for relatively quiet working environment.
3. Simple structure, maintenance-friendly.
4. Less energy consumption and lower operating costs.
The Fixed Belt Conveyor is a universal series. It is a continuous conveying equipment with cotton canvas, nylon, polyester canvas and wire rope core conveyor belt as traction components. It can be widely used in coal, metallurgy, mining, port, chemical industry, light industry, petroleum, machinery and other industries, conveying various kinds of bulk materials and integrated articles with bulk density of 500-2,500 kg/m3.
Convey a variety of bulk and packaged materials with a density range of 500 to 2,500 kg/m3.
The applicable working environment temperature is generally between -40℃(-40℉) and 40℃(104℉). For those who require a heat-resistant, cold-resistant, anti-corrosion, explosion-proof, and/or flame-resistant working environment, a special rubber conveyor belt should be used and protective measures should be taken accordingly. Different conveyor belts have different required temperature to convey materials. The temperature of the conveying materials should not be higher than 60℃(140℉) when using a standard conveyor; the temperature of the conveying materials can reach up to 120℃(248℉) when using a heat-resistant rubber belt conveyor; when conveying acidic, alkaline, oily materials and/or materials with organic solvent nature, it is necessary to choose an oil-resistant, acid-resistant, and alkali-resistant rubber or plastic belt conveyor.
-
