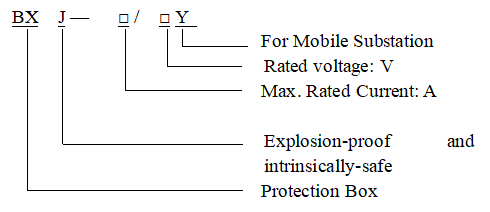

1) See the following table for basic parameters

Good explosion-proof performance, advanced technologies, stable and reliable protection performance, compact structure, easy for maintenance and overhaul.

I. Structural Features

The overall structure of the protective case consists of the explosion-proof primary chamber and wiring chamber.

1. The explosion-proof primary chamber consists of the front door, chamber, rear explosion-proof flange, etc.

a) The front door is provided with an easy-to-observe Chinese display window and operation buttons such as closing, opening, resetting, overloading, leakage, shifting, confirming and adjusting.

b) The chamber is equipped with PLC protection devices and various protection signal sampling components.

c) The explosion-proof flange at the rear of the explosion-proof chamber can be subject to flange connection with the wiring chamber of the mobile substation (dry-type transformer).

2. Three terminals of the main circuit and two seven-core terminals for control loop wiring shall be installed in the wiring chamber. There are two pressure plate cable lead-in devices at the left and right sides of the wiring chamber respectively, two M42 compression nut lead-in devices are installed in front of the wiring chamber, which can be used for external control wiring.

3. The door opening mode of the protective case has a quick opening door structure with a safety mechanical locking device.

a) Release locking before door opening, turn off the switch to cut off the power supply, the vacuum circuit breaker at the high voltage side is tripped, then the next operation can be conducted.

b) After the door is closed, it can be powered.

4. The full Chinese backlit LCD is adopted in the protective case, and parameter setting, data monitoring, historic record query and other operation can be conducted through the operation buttons those are installed on the front door.

II. Electrical Features

The Three-phase current signal, system voltage signal and additional DC voltage signal are directly connected to the PLC. The PLC analyzes and processes the digital signals of three-phase current, system voltage and insulation resistance according to the parameters preset, so as to complete short circuit, overload, electric leakage locking, leakage protection, overvoltage, undervoltage and other protection actions.

The protective box sends the signal of normal and abnormal operation at the low voltage side to the high voltage side of the switch through closing and opening of PLC output relay Q0.0, so as to realize control of the mobile substation.

1. The elevation height shall not exceed 2,000m (0.08~0.11MPa);

2. Ambient Temperature -5℃ to +40℃ (23°F to 104°F);

3. The surrounding relative humidity should not exceed 95% (25°C/77°F);

4. Places without strong vibration and shock;

5. Places where rain, snow, and drips can be prevented;

6. The installation inclination with the horizontal plane shall not exceed 15°.
